JQVMap is a jQuery plugin that renders Vector Maps. It uses resizable Scalable Vector Graphics (SVG) for modern browsers like Firefox, Safari, Chrome, Opera and Internet Explorer 9. Legacy support for older versions of Internet Explorer 6-8 is provided via VML
jQuery Vector Map
To get started, all you need to do is include the JavaScript and CSS files for the map you want to load. Here is a sample HTML page for loading the World Map with default settings:
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">
<head>
<title>JQVMap - World Map</title>
<link href="../jqvmap/jqvmap.css" media="screen" rel="stylesheet" type="text/css" />
<script src="http://ajax.googleapis.com/ajax/libs/jquery/1.7.2/jquery.min.js" type="text/javascript"></script>
<script src="../jqvmap/jquery.vmap.js" type="text/javascript"></script>
<script src="../jqvmap/maps/jquery.vmap.world.js" type="text/javascript"></script>
<script type="text/javascript">
jQuery(document).ready(function() {
jQuery('#vmap').vectorMap({ map: 'world_en' });
});
</script>
</head>
<body>
<div id="vmap" style="width: 600px; height: 400px;"></div>
</body>
</html>
Making it Pretty
While initializing a map you can provide parameters to change its look and feel.
jQuery('#vmap').vectorMap(
{
map: 'world_en',
backgroundColor: '#a5bfdd',
borderColor: '#818181',
borderOpacity: 0.25,
borderWidth: 1,
color: '#f4f3f0',
enableZoom: true,
hoverColor: '#c9dfaf',
hoverOpacity: null,
normalizeFunction: 'linear',
scaleColors: ['#b6d6ff', '#005ace'],
selectedColor: '#c9dfaf',
selectedRegion: null,
showTooltip: true,
onRegionClick: function(element, code, region)
{
var message = 'You clicked "'
+ region
+ '" which has the code: '
+ code.toUpperCase();
alert(message);
}
});
Configuration Settings
map 'world_en'

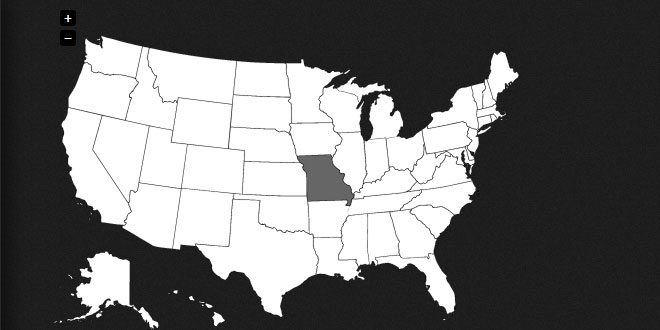

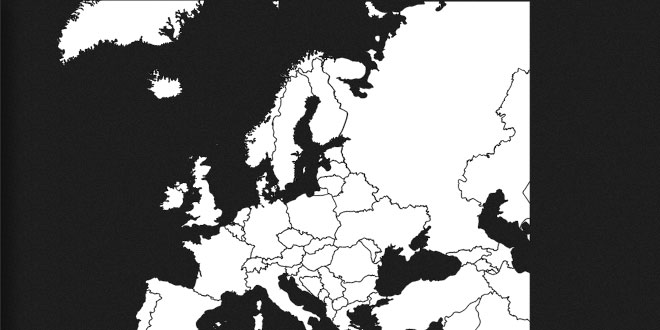

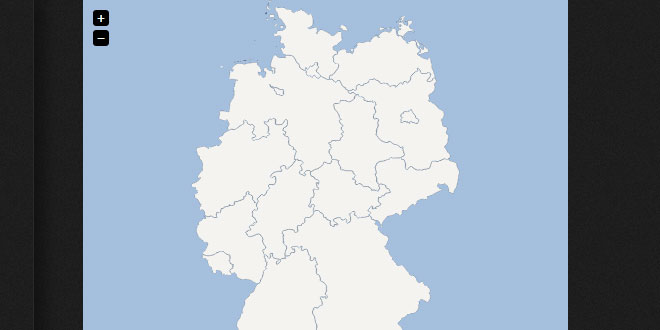

Map you want to load. Must include the javascript file with the name of the map you want. Available maps with this library are world_en, usa_en, europe_en and germany_en
backgroundColor '#a5bfdd'
Background color of map container in any CSS compatible format.
borderColor '#818181'
Border Color to use to outline map objects
borderOpacity 0.5
Border Opacity to use to outline map objects ( use anything from 0-1, e.g. 0.5, defaults to 0.25 )
borderWidth 3
Border Width to use to outline map objects ( defaults to 1 )
color '#f4f3f0'
Color of map regions.
colors
Colors of individual map regions. Keys of the colors objects are country codes according to ISO 3166-1 alpha-2 standard. Keys of colors must be in lower case.
enableZoom boolean
Whether to Enable Map Zoom ( true or false, defaults to true)
hoverColor '#c9dfaf'
Color of the region when mouse pointer is over it.
hoverOpacity 0.5
Opacity of the region when mouse pointer is over it.
normalizeFunction 'linear'
This function can be used to improve results of visualizations for data with non-linear nature. Function gets raw value as the first parameter and should return value which will be used in calculations of color, with which particular region will be painted.
scaleColors ['#b6d6ff', '#005ace']
This option defines colors, with which regions will be painted when you set option values. Array scaleColors can have more then two elements. Elements should be strings representing colors in RGB hex format.
selectedRegion 'mo'
This is the Region that you are looking to have preselected (two letter ISO code, defaults to null )
WORLD ------------------------------ AE = United Arab Emirates AF = Afghanistan AG = Antigua and Barbuda AL = Albania AM = Armenia AO = Angola AR = Argentina AT = Austria AU = Australia AZ = Azerbaijan BA = Bosnia and Herzegovina BB = Barbados BD = Bangladesh BE = Belgium BF = Burkina Faso BG = Bulgaria BI = Burundi BJ = Benin BN = Brunei Darussalam BO = Bolivia BR = Brazil BS = Bahamas BT = Bhutan BW = Botswana BY = Belarus BZ = Belize CA = Canada CD = Congo CF = Central African Republic CG = Congo CH = Switzerland CI = Cote d'Ivoire CL = Chile CM = Cameroon CN = China CO = Colombia CR = Costa Rica CU = Cuba CV = Cape Verde CY = Cyprus CZ = Czech Republic DE = Germany DJ = Djibouti DK = Denmark DM = Dominica DO = Dominican Republic DZ = Algeria EC = Ecuador EE = Estonia EG = Egypt ER = Eritrea ES = Spain ET = Ethiopia FI = Finland FJ = Fiji FK = Falkland Islands FR = France GA = Gabon GB = United Kingdom GD = Grenada GE = Georgia GF = French Guiana GH = Ghana GL = Greenland GM = Gambia GN = Guinea GQ = Equatorial Guinea GR = Greece GT = Guatemala GW = Guinea-Bissau GY = Guyana HN = Honduras HR = Croatia HT = Haiti HU = Hungary ID = Indonesia IE = Ireland IL = Israel IN = India IQ = Iraq IR = Iran IS = Iceland IT = Italy JM = Jamaica JO = Jordan JP = Japan KE = Kenya KG = Kyrgyz Republic KH = Cambodia KM = Comoros KN = Saint Kitts and Nevis KP = North Korea KR = South Korea KW = Kuwait KZ = Kazakhstan LA = Lao People's Democratic Republic LB = Lebanon LC = Saint Lucia LK = Sri Lanka LR = Liberia LS = Lesotho LT = Lithuania LV = Latvia LY = Libya MA = Morocco MD = Moldova MG = Madagascar MK = Macedonia ML = Mali MM = Myanmar MN = Mongolia MR = Mauritania MT = Malta MU = Mauritius MV = Maldives MW = Malawi MX = Mexico MY = Malaysia MZ = Mozambique NA = Namibia NC = New Caledonia NE = Niger NG = Nigeria NI = Nicaragua NL = Netherlands NO = Norway NP = Nepal NZ = New Zealand OM = Oman PA = Panama PE = Peru PF = French Polynesia PG = Papua New Guinea PH = Philippines PK = Pakistan PL = Poland PT = Portugal PY = Paraguay QA = Qatar RE = Reunion RO = Romania RS = Serbia RU = Russian Federationß RW = Rwanda SA = Saudi Arabia SB = Solomon Islands SC = Seychelles SD = Sudan SE = Sweden SI = Slovenia SK = Slovakia SL = Sierra Leone SN = Senegal SO = Somalia SR = Suriname ST = Sao Tome and Principe SV = El Salvador SY = Syrian Arab Republic SZ = Swaziland TD = Chad TG = Togo TH = Thailand TJ = Tajikistan TL = Timor-Leste TM = Turkmenistan TN = Tunisia TR = Turkey TT = Trinidad and Tobago TW = Taiwan TZ = Tanzania UA = Ukraine UG = Uganda US = United States of America UY = Uruguay UZ = Uzbekistan VE = Venezuela VN = Vietnam VU = Vanuatu YE = Yemen ZA = South Africa ZM = Zambia ZW = Zimbabwe USA ------------------------------ AK = Alaska AL = Alabama AR = Arkansas AZ = Arizona CA = California CO = Colorado CT = Connecticut DC = District of Columbia DE = Delaware FL = Florida GA = Georgia HI = Hawaii IA = Iowa ID = Idaho IL = Illinois IN = Indiana KS = Kansas KY = Kentucky LA = Louisiana MA = Massachusetts MD = Maryland ME = Maine MI = Michigan MN = Minnesota MO = Missouri MS = Mississippi MT = Montana NC = North Carolina ND = North Dakota NE = Nebraska NH = New Hampshire NJ = New Jersey NM = New Mexico NV = Nevada NY = New York OH = Ohio OK = Oklahoma OR = Oregon PA = Pennsylvania RI = Rhode Island SC = South Carolina SD = South Dakota TN = Tennessee TX = Texas UT = Utah VA = Virginia VT = Vermont WA = Washington WI = Wisconsin WV = West Virginia WY = Wyoming EUROPE ------------------------------ AD = Andorra AL = Albania AM = Armenia AT = Austria AZ = Azerbaijan BA = Bosnia and Herzegovina BE = Belgium BG = Bulgaria BY = Belarus CH = Switzerland CY = Cyprus CZ = Czech Republic DE = Germany DK = Denmark DZ = Algeria EE = Estonia ES = Spain FI = Finland FR = France GB = United Kingdom GE = Georgia GL = Greenland GR = Greece HR = Croatia HU = Hungary IE = Ireland IL = Israel IQ = Iraq IR = Iran IS = Iceland IT = Italy JO = Jordan KZ = Kazakhstan LB = Lebanon LI = Liechtenstein LT = Lithuania LU = Luxembourg LV = Latvia MA = Morocco MC = Monaco MD = Moldova ME = Montenegro MK = Macedonia MT = Malta NL = Netherlands NO = Norway PL = Poland PT = Portugal RO = Romania RU = Russian Federation SA = Saudi Arabia SE = Sweden SI = Slovenia SK = Slovakia SM = San Marino SR = Suriname SY = Syrian Arab Republic TM = Turkmenistan TN = Tunisia TR = Turkey UA = Ukraine GERMANY ------------------------------ BB = Brandenburg BE = Berlin BW = Baden-WÃrttemberg BY = Bayern HB = Bremen HE = Hessen HH = Hamburg MV = Mecklenburg-Vorpommern NI = Niedersachsen NW = Nordrhein-Westfalen RP = Rheinland-Pfalz SH = Schleswig-Holstein SL = Saarland SN = Sachsen ST = Sachsen-Anhalt TH = ThÃri RUSSIA ------------------------------ CH = Chukotka Autonomous Okrug KA = Kamchatka Krai MA = Magadan Oblast SA = Sakha Republic AM = Amur Oblast PR = Primorsky Krai EU = Jewish Autonomous Oblast HA = Khabarovsk Krai SH = Sakhalin Oblast OM = Omsk Oblast NV = Novosibirsk Oblast AL = Altai Krai LT = Altai Republic TV = Tuva Republic HK = Republic of Khakassia KM = Kemerovo Oblast TM = Tomsk Oblast ZB = Zabaykalsky Krai BR = Buryat Republic IR = Irkutsk Oblast KR = Krasnoyarsk Krai YA = Yamalo-Nenets Autonomous Okrug HT = Khanty–Mansi Autonomous Okrug TU = Tyumen Oblast KU = Kurgan Oblast CL = Chelyabinsk Oblast SV = Sverdlovsk Oblast AR = Arkhangelsk Oblast NE = Nenets Autonomous Okrug KO = Komi Republic MU = Murmansk Oblast VO = Vologda Oblast NO = Novgorod Oblast PS = Pskov Oblast LE = Leningrad Oblast KL = Republic of Karelia KN = Kaliningrad Oblast DA = Republic of Dagestan ST = Stavropol Krai SO = Republic of North Ossetia–Alania KB = Kabardino-Balkar Republic KH = Karachay–Cherkess Republic CC = Chechen Republic IN = Republic of Ingushetia AD = Republic of Adygea KS = Krasnodar Krai RO = Rostov Oblast KK = Republic of Kalmykia AS = Astrakhan Oblast VL = Volgograd Oblast TR = Tver Oblast SM = Smolensk Oblast BN = Bryansk Oblast KY = Kursk Oblast BL = Belgorod Oblast OR = Oryol Oblast KJ = Kaluga Oblast TL = Tula Oblast LP = Lipetsk Oblast MC = Moscow Oblast RZ = Ryazan Oblast TB = Tambov Oblast VM = Vladimir Oblast IV = Ivanovo Oblast YR = Yaroslavl Oblast KT = Kostroma Oblast NN = Nizhny Novgorod Oblast MR = Republic of Mordovia PZ = Penza Oblast SR = Saratov Oblast SS = Samara Oblast OB = Orenburg Oblast BS = Republic of Bashkortostan UL = Ulyanovsk Oblast CU = Chuvash Republic TA = Republic of Tatarstan ML = Mari El Republic UD = Udmurt Republic KI = Kirov Oblast PE = Perm Krai VN = Voronezh Oblast
showTooltip boolean
Whether to show Tooltips on Mouseover ( true or false, defaults to true)
onLabelShow function(event, label, code)
Callback function which will be called before label is shown. Label DOM object and country code will be passed to the callback as arguments.
onRegionOver function(event, code, region)
Callback function which will be called when the mouse cursor enters the region path. Country code will be passed to the callback as argument.
onRegionOut function(event, code, region)
Callback function which will be called when the mouse cursor leaves the region path. Country code will be passed to the callback as argument.
onRegionClick function(event, code, region)
Callback function which will be called when the user clicks the region path. Country code will be passed to the callback as argument. This callback may be called while the user is moving the map. If you need to distinguish between a "real" click and a click resulting from moving the map, you can inspect$(event.currentTarget).data('mapObject').isMoving.
Dynamic Updating
Most of the options can be changed after initialization using the following code:
jQuery('#vmap').vectorMap('set', 'colors', {us: '#0000ff'});
Instead of colors can be used any parameter except callbacks. Callbacks can be added and deleted using standard jQuery patterns of working with events. You can define callback function when you initialize JQVMap:
jQuery('#vmap').vectorMap(
{
onLabelShow: function(event, label, code)
{
},
onRegionOver: function(event, code, region)
{
},
onRegionOut: function(event, code, region)
{
},
onRegionClick: function(event, code, region)
{
}
});
Or later using standard jQuery mechanism:
jQuery('#vmap').bind('labelShow.jqvmap',
function(event, label, code)
{
}
);
jQuery('#vmap').bind('regionMouseOver.jqvmap',
function(event, code, region)
{
}
);
jQuery('#vmap').bind('regionMouseOut.jqvmap',
function(event, code, region)
{
}
);
jQuery('#vmap').bind('regionClick.jqvmap',
function(event, code, region)
{
}
);
Consider that fact that you can use standard features of jQuery events like event.preventDefault() or returning false from the callback to prevent default behavior of JQVMap (showing label or changing country color on hover). In the following example, when user moves mouse cursor over Canada label won't be shown and color of country won't be changed. At the same label for Russia will have custom text.
jQuery('#vmap').vectorMap(
{
onLabelShow: function(event, label, code)
{
if (code == 'ca')
{
event.preventDefault();
}
else if (code == 'ru')
{
label.text('Bears, vodka, balalaika');
}
},
onRegionOver: function(event, code)
{
if (code == 'ca')
{
event.preventDefault();
}
},
});

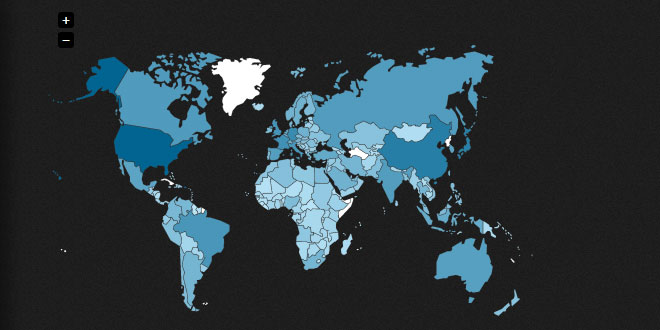

Data Visualization
Here I want to demonstrate how visualization of some geographical-related data can be done using JQVMap. Let's visualize information about GDP in 2010 for every country. At first we need some data. Let it be site of International Monetary Fond. There we can get information in xsl format, which can be converted first to csv and then to json with any scripting language. Now we have file gdp-data.js with such content (globals are evil, I know, but just for the sake of simplification):
var sample_data = {"af":16.63,"al":11.58,"dz":158.97,...};
Then connect it to the page and add some code to make visualization:
var max = 0,
min = Number.MAX_VALUE,
cc,
startColor = [200, 238, 255],
endColor = [0, 100, 145],
colors = {},
hex;
//find maximum and minimum values
for (cc in gdpData)
{
if (parseFloat(gdpData[cc]) > max)
{
max = parseFloat(gdpData[cc]);
}
if (parseFloat(gdpData[cc]) < min)
{
min = parseFloat(gdpData[cc]);
}
}
//set colors according to values of GDP
for (cc in gdpData)
{
if (gdpData[cc] > 0)
{
colors[cc] = '#';
for (var i = 0; i<3; i++)
{
hex = Math.round(startColor[i]
+ (endColor[i]
- startColor[i])
* (gdpData[cc] / (max - min))).toString(16);
if (hex.length == 1)
{
hex = '0'+hex;
}
colors[cc] += (hex.length == 1 ? '0' : '') + hex;
}
}
}
//initialize JQVMap
jQuery('#vmap').vectorMap(
{
colors: colors,
hoverOpacity: 0.7,
hoverColor: false
});
