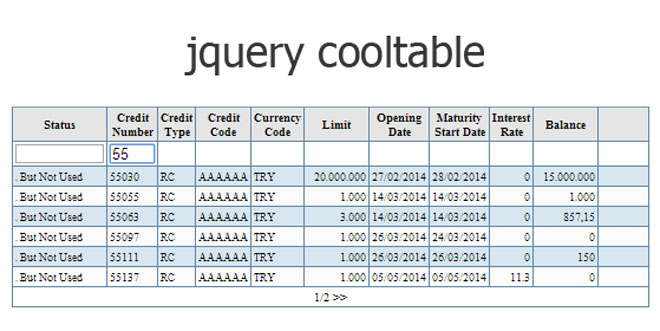

Cooltable is a very very cool jQuery plugin for creating tables with sorting, filtering, custom cell rendering, custom css and custom sorting support
Source: github.com
1. INCLUDE JS FILES
<script src="./jquery.cooltable.js"></script> <script src="./jquery-1.6.2.min.js"></script>
2. HTML
<div id="rcGrid" ></div> <div id="rcPaginator"></div>
3. JAVASCRIPT
- After you need to initialize your grid by creating an array which holds table metadata like (Column Title, key for gathering data for that column, column header style, data style etc... Must have attributes for a column are name and label. Optional attributes will be explained in metadata attributes section.
var metadata = [];
metadata.push({ name: "status", label: "Status"});
metadata.push({ name: "creditNo", label:"Credit Number"});
metadata.push({ name: "creditType", label:"Credit Type"});
metadata.push({ name: "creditCode", label: "Credit Code"});
- Than we need to construct our data array which contains data of the table. One thing you need to be careful about the structure of data. For a single row there is an data structure like below :
{id: 0,values: {"status":"Opened","creditNo":"10A3423","creditType":"RC", "creditCode":"A"}};
Here id attribute is generally used for identification of the row. For example if you sort or filter the row you may need to know identity of the row you have clicked. And values object inside the row object contains the values for columns. Here plug in takes the data of the column with name attribute's value. For example for status column the value of the row is Opened.
- After understanding one single row data structure you need to create a data array which holds the row objects :
var data = [];
data.push({id: 0,values: {"status":"Opened","creditNo":"10A3423","creditType":"RC", "creditCode":"A"}});
data.push({id: 1,values: {"status":"Closed","creditNo":"10A3422","creditType":"RC", "creditCode":"A"}});
data.push({id: 2,values: {"status":"Opened But Not Used","creditNo":"10A3429","creditType":"RC", "creditCode":"A"}});
data.push({id: 3,values: {"status":"Opened","creditNo":"10A3444","creditType":"RC", "creditCode":"A"}});
- Finally we have got our metadata and data arrays. Now if we want we can create a rowSettings array for adjusting css of rows, row hover style and row functions when we trigger an event such as 'click', 'dblclick' :
function rowDblClicked(event) {
alert('dbl click occurred event data:'+event.data.values.creditNo);
}
function rowClicked(event) {
alert('click occurred event data:'+event.data.id);
}
var rowSettings = {evenRowStyle:{"background":"#d8e6f0"},oddRowStyle:{"background":"#fcfcfc"},
hoverStyle:{"background-color":"#99CCFF"},rowFunctions:
[{eventType:"dblclick",functionToCall:rowDblClicked},{eventType:"click",functionToCall:rowClicked}]};
All attributes above are optional. You can give your css for an even row or an odd row with jQuery css syntax. If you want to change the row's style while mouse over you can use hoverStyle attribute. If you want to bind events over row you can use rowFunctions attribute. It's type should be array even if you just bind one event. You can define your own functions and you will receive row data from event.data object. If you don't want any settings for rowSettings you can just leave it as null.
- Finally it is time to draw our table before drawing it one last thing to remember. If you want pagination you can pass it to the constructor of CoolGrid object if you want a table without pagination just leave it null or don't write.
var pageSize = 6;
tablo = new CoolTable('rcGrid',metadata,rowData,'crmgrid',pageSize,rowSettings);
tablo.drawTable();
Above rcGrid is the id of the div which will host our table, metadata array is the array which holds column info, rowData is the real data which we want to show in our table, 'crmgrid' is the css class for our table, pageSize is the size of the one page and which enables pagination and finally rowSettings holds the css info and functions which would be called when a specified event occurs.
Full code of example
var MyUtil ={
sortListByField:function (ranarray, sortfield) {
var x, y, holder;
// The Bubble Sort method.
for (x = 0; x < ranarray.length; x++) {
var swapOccured = false;
for (y = 0; y < (ranarray.length - 1); y++) {
if (ranarray[y][sortfield] > ranarray[y + 1][sortfield]) {
holder = ranarray[y + 1];
ranarray[y + 1] = ranarray[y];
ranarray[y] = holder;
swapOccured = true;
}
}
if (!swapOccured) break;
}
},
formatNumber:function(nStr){
if( nStr===undefined || nStr==null )return '';
nStr += '';
x = nStr.split('.');
x1 = x[0];
x2 = x.length > 1 ? ',' + x[1] : '';
var rgx = /(\d+)(\d{3})/;
while (rgx.test(x1)) {
x1 = x1.replace(rgx, '$1' + '.' + '$2');
}
return x1 + x2.substring(0,3); //virgulden sonra sadece 2 karakter goster.
},
removeNull:function(v){
return (v === undefined || v == null) ? "" : v;
},
log: function(){
if(typeof(top.console)!=='undefined'){
try{top.console.log(JSON.stringify(arguments)); }
catch(e){}
}
}
}
var tablo ;
$(document).ready(function () {
var gridName = "bchGrid";
var imageFunction = function (rowdata,celldata){
return $('<span>').
append($('<img></img>')
.attr('src','/Advisor/xAdvisorWeb/images/kredi_kullanimi.png')
.attr('height','16')
.attr('title','Credit Usage')
.css({'cursor':'pointer','padding-left':'1px','padding-right':'1px'})
.click(function(){alert('do what you want here!');}))
.append($('<img></img>')
.attr('src','/Advisor/xAdvisorWeb/images/borc_odeme.png')
.attr('height','16')
.attr('title','Loan Payment')
.css({'cursor':'pointer','padding-left':'1px','padding-right':'1px'})
.click(function(){alert('do what you want here!');}))
.append($('<img></img>')
.attr('src','/Advisor/xAdvisorWeb/images/icon-kapama.png')
.attr('height','16')
.attr('title','Close Credit')
.css({'cursor':'pointer','padding-left':'1px','padding-right':'1px'})
.click(function(){alert('do what you want here!');}));
}
var dateSort1 = function (a,b) {
var pad ='00';
var arr = a.values['openingDate'].split("/");
var aNum = Number(arr[2]+(pad+arr[1]).slice(-pad.length)+(pad+arr[0]).slice(-pad.length));
arr = b.values['openingDate'].split("/");
var bNum = Number(arr[2]+(pad+arr[1]).slice(-pad.length)+(pad+arr[0]).slice(-pad.length));
if(aNum>bNum)
return -1;
else if(aNum<bNum)
return 1;
else
return 0;
};
var dateSort2 = function (a,b) {
var pad ='00';
var arr = a.values['maturityStartDate'].split("/");
var aNum = Number(arr[2]+(pad+arr[1]).slice(-pad.length)+(pad+arr[0]).slice(-pad.length));
arr = b.values['maturityStartDate'].split("/");
var bNum = Number(arr[2]+(pad+arr[1]).slice(-pad.length)+(pad+arr[0]).slice(-pad.length));
if(aNum>bNum)
return -1;
else if(aNum<bNum)
return 1;
else
return 0;
};
var metadata = [];
metadata.push({ name: "status", label: "Status", datatype: "string",headerStyle:{"width":"15%","cursor":"pointer"},renderFunction:function(rowdata,celldata){ return $('<span>').text('.'+celldata.substring(celldata.indexOf(' '),celldata.length)).attr('title',celldata);},filterable:true});
metadata.push({ name: "creditNo", label:"Credit Number", datatype: "string",headerStyle:{"width":"8%","cursor":"pointer"},filterable:true});
metadata.push({ name: "creditType", label:"Credit Type", datatype: "string",headerStyle:{"width":"5%","cursor":"pointer"}});
metadata.push({ name: "creditCode", label: "Credit Code", datatype: "string",headerStyle:{"width":"8%","cursor":"pointer"}});
metadata.push({ name: "currencyCode", label: "Currency Code", datatype: "string",headerStyle:{"width":"5%","cursor":"pointer"}});
metadata.push({ name: "limit", label: "Limit", datatype: "string",headerStyle:{"cursor":"pointer"},dataStyle:{"text-align":"right"},renderFunction:function(rowdata,celldata){ return MyUtil.formatNumber(celldata);}});
metadata.push({ name: "openingDate", label: "Opening Date", datatype: "string",headerStyle:{"width":"8%","cursor":"pointer"},customSortFunction:dateSort1});
metadata.push({ name: "maturityStartDate", label: "Maturity Start Date", datatype: "string",headerStyle:{"width":"8%","cursor":"pointer"},customSortFunction:dateSort2});
metadata.push({ name: "totalInterestRate", label: "Interest Rate", datatype: "string",headerStyle:{"width":"5%","cursor":"pointer"},dataStyle:{"text-align":"right"}});
metadata.push({ name: "balance", label: "Balance", datatype: "string",headerStyle:{"cursor":"pointer"},dataStyle:{"text-align":"right"},renderFunction:function(rowdata,celldata){ return MyUtil.formatNumber(celldata);}});
metadata.push({ name: "link", label: "", datatype: "img",headerStyle:{"width":"8%"},sortable:"false"/*,renderFunction:imageFunction*/});
function rowDblClicked(event) {
MyUtil.log(event.data);
}
function rowClicked(event) {
alert(event.data.values.creditNo);
}
var rowSettings = {evenRowStyle:{"background":"#d8e6f0"},oddRowStyle:{"background":"#fcfcfc"},hoverStyle:{"background-color":"#99CCFF"},rowFunctions:[{eventType:"dblclick",functionToCall:rowDblClicked},{eventType:"click",functionToCall:rowClicked}]};
var data = [{"status":"Opened But Not Used","creditNo":"55030","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":20000000,"openingDate":"27/02/2014","maturityStartDate":"28/02/2014","totalInterestRate":0,"balance":15000000,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55055","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":1000,"openingDate":"14/03/2014","maturityStartDate":"14/03/2014","totalInterestRate":0,"balance":1000,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55063","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":3000,"openingDate":"14/03/2014","maturityStartDate":"14/03/2014","totalInterestRate":0,"balance":857.15,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55097","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":1000,"openingDate":"26/03/2014","maturityStartDate":"24/03/2014","totalInterestRate":0,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55111","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":1000,"openingDate":"26/03/2014","maturityStartDate":"26/03/2014","totalInterestRate":0,"balance":150,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55137","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":1000,"openingDate":"05/05/2014","maturityStartDate":"05/05/2014","totalInterestRate":11.3,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55145","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":100,"openingDate":"05/05/2014","maturityStartDate":"05/05/2014","totalInterestRate":11.4,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55152","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":100,"openingDate":"06/05/2014","maturityStartDate":"06/05/2014","totalInterestRate":11.4,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55160","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":100,"openingDate":"06/05/2014","maturityStartDate":"06/05/2014","totalInterestRate":11.4,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55178","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":100,"openingDate":"07/05/2014","maturityStartDate":"07/05/2014","totalInterestRate":0,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55186","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":2000,"openingDate":"08/05/2014","maturityStartDate":"27/02/2014","totalInterestRate":0,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"55194","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":100,"openingDate":"08/05/2014","maturityStartDate":"08/05/2014","totalInterestRate":11.4,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"56289","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":2000,"openingDate":"09/05/2014","maturityStartDate":"27/02/2014","totalInterestRate":0,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"56297","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":100,"openingDate":"09/05/2014","maturityStartDate":"09/05/2014","totalInterestRate":0,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"56303","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":100,"openingDate":"15/05/2014","maturityStartDate":"15/05/2014","totalInterestRate":11.54,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"56311","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":1000,"openingDate":"16/05/2014","maturityStartDate":"16/05/2014","totalInterestRate":0,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"56329","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":1000,"openingDate":"20/05/2014","maturityStartDate":"20/05/2014","totalInterestRate":20,"balance":100,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"56337","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":1000,"openingDate":"20/05/2014","maturityStartDate":"20/05/2014","totalInterestRate":20,"balance":250,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"56345","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":100,"openingDate":"21/05/2014","maturityStartDate":"21/05/2014","totalInterestRate":11.52,"balance":0,"branchCode":"DNZL"},{"status":"Opened But Not Used","creditNo":"56360","creditType":"RC","creditCode":"AAAAAA","currencyCode":"TRY","limit":100,"openingDate":"05/06/2014","maturityStartDate":"05/06/2014","totalInterestRate":20,"balance":10,"branchCode":"DNZL"}];
var rowData = [];
for(var i = 0;i< data.length;i++) {
var inp = data[i];
var temp = {id: i,values: {"status":inp.status,"creditNo":inp.creditNo,
"creditType":inp.creditType, "creditCode":inp.creditCode,
"currencyCode":inp.currencyCode,"limit":inp.limit,
"openingDate":inp.openingDate,"maturityStartDate":inp.maturityStartDate,
"totalInterestRate":inp.totalInterestRate,"balance":inp.balance,"link":"","branchCode":inp.branchCode}};
rowData.push(temp);
}
var pageSize = 6;
tablo = new CoolTable('rcGrid',metadata,rowData,'crmgrid',pageSize,rowSettings);
tablo.drawTable();
});
