FreeWall - Creating dynamic grid layouts

Freewall is a cross-browser and responsive jQuery plugin to help you create many types of grid layouts: flexible layouts, images layouts, nested grid layouts, metro style layouts, pinterest like layouts ... with nice CSS3 animation effects and call back events. Freewall is all-in-one solution for creating dynamic grid layouts for desktop, mobile and tablet.

Features

• Draggable support
• Direction support
• Custom plugin
• Responsive grid
• Gaps control
• Filter items
• CSS3 animation (js fallback)
• Nested grid
• Images grid/layout
• Fit container
• Vertical grid/layout
• Horizontal grid/layout

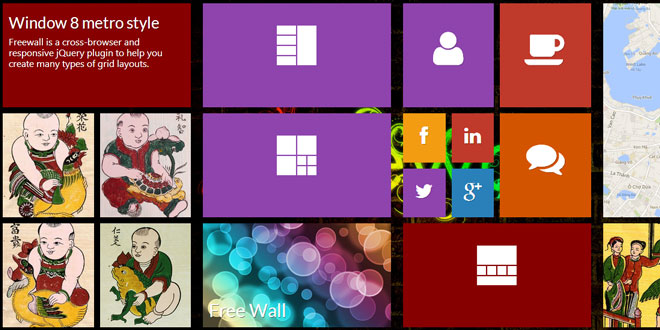

• Window 8 metro style

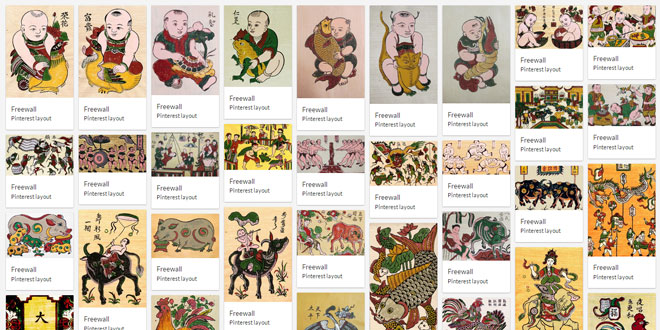

• Pinterest like grid/layout

How it works

Based on the width (or height) of a container and the width (height) of a cell unit, It will create a virtual matrix. Scaning the matrix at each cell will find a free cell around to made a free area, then try to fit a block element into it. In case no block can fit the gap, it will resize the block to fill the gap (that is one of the options).

• denizli escort
• denizli escort
• didim escort
• düzce escort
• edirne escort
• edirne escort
• edremit escort

Source: vnjs.net

1. INCLUDE JS FILES

<script src="js/jquery-1.10.2.min.js"></script>
<script src="../freewall.js"></script>

2. HTML

<div id="container">
    <div class="item"></div>
    <div class="item"></div>
    <div class="item"></div>
    <div class="item"></div>
    <div class="item"></div>
    <div class="item"></div>
    <div class="item"></div>
</div>

3. CSS

 #container {
      width: 80%;
      margin: auto;
}
.item {
      background: rgb(135, 199, 135);
      width: 320px;
      height: 320px;
}

4. JAVASCRIPT

$(function() {
      var wall = new freewall("#container");
      wall.fitWidth();
});

5. OPTIONS

All options are parameters of Reset method

• draggable : boolean

  Default: false
  True: to make block can be drag & drop

• animate : boolean

  True: to make block move with animation

• cache : boolean

  Default: true
  True: will cache the with and height of block for next time

• cellW: mix

  Default: 100
  The width of unit, base on it will build grid container. It can be a function and return value.

  Example

  var wall = new freewall('.free-wall');
  wall.reset({
    selector: '.brick',
    cellW: function(width) {
        var cellWidth = width / 3;
        return cellWidth - 20;
      },
    cellH: 160
  });

• cellH: mix

  Default: 100
  The height of unit, base on it will build grid container. It can be a function and return value.

• delay : number

  Default: 0
  The time delay for show block. It will increase by each block.

• fixSize : boolean

  Default: null
  value is null or not set let blocks can adjust and resize to fill gap
  value is 0 or false let blocks can adjust size but can't resize to fill gap.
  value is 1 or true let blocks keep the size as init, can't resize to fill gap.
  Can override the fixSize option by set data-fixSize attribute in the block.

  Example

  <div class="brick size22" data-fixSize=true>
    <div class='cover'>
      <div class="item size12"></div>
      <div class="item size12"></div>
    </div>
  </div>

• gutterX : mixed

  Default: 10
  The horizon spacing between the column. Default is number, but can set it with 'auto' value.

• gutterY : mixed

  Default: 10
  The vertical spacing between the row. Default is number, but can set it with 'auto' value.

• selector : string

  Get all blocks to made layout

• Example

  var wall = new freewall('.free-wall');
  wall.reset({
    selector: '.brick',
    animate: true,
    cellW: 150,
    cellH: 150,
    gutterY: 10,
    gutterX: 'auto'
  });

• rightToLeft : boolean

  Default: false
  True: let layout start render from right to left

• bottomToTop : boolean

  Default: false
  True: let layout start render from bottom up to top

• addCustomEvent(name, handler)

  Support create custom event when arrange layout

• appendBlock(items)

  Append one or more items into layout

• appendHoles(holes)

  Add one or more blank area into layout

• fillHoles()

  Let layout without gaps

• filter(selector)

  Fillter blocks to show

• fireEvent()

  Fire custom event

• fitHeight(height)

  Made the layout fit with limit height

• fitWidth(width)

  Made the layout fit with limit width

• fitZone(width, height)

  Made the layout fit with limit width and height

• fixPos(object)

  Set a block at fixed position, top/left is multiple of cell with/height

• fixSize(object)

  Set a block with special width or height

  Example

  var wall = new freewall('.free-wall');
  var dna = $(".free-wall .flex-layout");
  wall.unsetFilter();
  wall.fixSize({
    block: dna,
    width: 150,
    height: 150
  });
  wall.fitWidth();

• prepend(items)

  Prepend one or more items into layout

• refresh()

  rearrange layout

• reset(options)

  Config options for render layout.

  Example

  var ewall = new freewall(demo);
  var demo = $(".example");
  ewall.reset({
    selector: '.cell',
    animate: true,
    delay: 20,
    cellW: 15.5,
    cellH: 15,
    gutterX: 2,
    gutterY: 2
  });
  ewall.fitWidth(cwidth);

• setHoles(hole)

  Set the holes on layout

• unFilter()

  Made all block to show

7. EVENTS

• onGapFound

  Registry callback when a gap found.

• onComplete

  Registry callback when all block arrange.

• onResize

  Registry callback when browser resize.

• Example

  var wall = new freewall('.free-wall');
  wall.reset({
    selector: '.brick',
    onResize: function() {
      this.fitWidth();
    }
  });

• onBlockReady

  Fire when block adjusted.

• onBlockActive

  Fire before block show or hide in the layout.

• onBlockFinish

  Fire when block finish show or hide in the layout.
