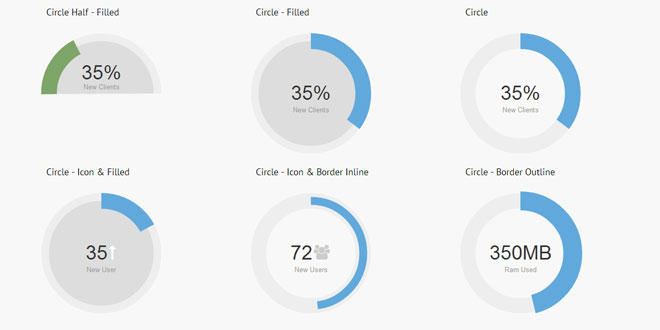

Circliful - jQuery circle statitic plugin
- show Infos as Circle Statistics, no images used
- based on html5 canvas and jquery
- many options can be set as data attributes
- fontawesome integration
1. INCLUDE CSS AND JS FILES
<link href="css/jquery.circlify.css" rel="stylesheet" type="text/css" /> <script src="http://code.jquery.com/jquery-1.10.2.min.js"></script> <script src="js/jquery.circliful.min.js"></script>
2. HTML
<div id="myStat" data-dimension="250" data-text="35%" data-info="New Clients" data-width="30" data-fontsize="38" data-percent="35" data-fgcolor="#61a9dc" data-bgcolor="#eee" data-fill="#ddd" data-total="200" data-part="35" data-icon="long-arrow-up" data-icon-size="28" data-icon-color="#fff"></div>
3. JAVASCRIPT
$( document ).ready(function() { $('#myStat').circliful(); });
4. OPTIONS
you can set the options easily as data attributes for Example: data-dimension="250"
- dimension is the height and width of the element / default is 200px on 200px
- text will be deisplayed inside of the circle over the info element
- info will be deisplayed inside of the circle bellow the text element (can be empty if you dont want to show info text)
- width is the size of circle / default is 15px
- fontsize is the font size for the text element / default is 15px
- percent can be 1 to 100
- fgcolor is the foreground color of the circle / default is #556b2f
- bgcolor is the background color of the cicle / default is #eee
- fill is the background color of the whole circle (can be empty if you dont want to set a background to the whole circle)
- type full or half circle for example data-type="half" if not set the circle will be a full circle / default full circle
- total If you want to display the percentage of a value for example you have 750MB Ram and at the moment are 350MB in use. You need to set data-total="750" and data-part="350" and the circle will show the percentage value 36,85%
- part
- border Will change the styling of the circle. The line for showing the percentage value will be displayed inline or outline.
- icon Fontawesome icon class without the fa- before the class for example not fa-plus just plus
- icon-size Will set the font size of the icon.
- icon-color Will set the font color of the icon.
- animation-step Will set the animation step, use 0 to disable animation, 0.5 to slow down, 2 to speed up, etc / default is 1
