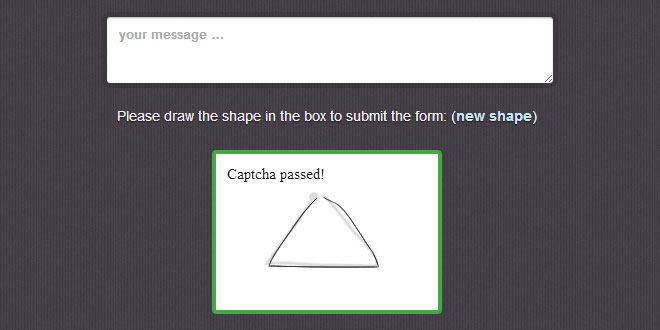

Motion CAPTCHA – Stop Spam, Draw Shapes

Motion CAPTCHA is a jQuery CAPTCHA plugin, based on the HTML5 Canvas that requires users to sketch the shape they see in the canvas in order to submit a form

At the moment, it's just a proof-of-concept, (no IE support) but the next releases will see progressive enhancement and the ability to use this in production environments as a serious CAPTCHA alternative

• denizli escort
• denizli escort
• didim escort
• düzce escort
• edirne escort
• edirne escort
• edremit escort

Source: josscrowcroft.com

1. INCLUDE JS AND CSS FILE

<script src="http://ajax.googleapis.com/ajax/libs/jquery/1.6/jquery.min.js"></script>
<script src="jquery.motionCaptcha.0.2.min.js"></script>
<link href="jquery.motionCaptcha.0.2.css"></script>

2. HTML

Code the form as usual, with a unique ID (eg. ‘#mycoolform’) and set the form action to blank (or ‘#’) – eg:

<form action="#" id="mycoolform" method="[get/post]">

Add this placeholder <div> element to your form (NB. use <fieldset>s if you need it to validate) containing the blank canvas:

<div id="mc">
    <p>Please draw the shape in the box to submit the form:</p>
    <canvas id="mc-canvas"></canvas>
</div>

Disable the submit button, eg:

<input type="submit" disabled="disabled" value="Submit Form" />

Add a hidden input to the form, with the form action as its value. Give it either a unique id, or the id ‘mc-action’, like so:

<input type="hidden" id="fairly-unique-id" value="submitform.php" />

3. JAVASCRIPT

Call the plugin on the form element. If you used any other ID than ‘mc-action’ for the hidden input, you’ll just need to pass it to the plugin, like this:

$('#form-id').motionCaptcha({
    action: '#fairly-unique-id'
});

// Or, if you just used 'mc-action' as the hidden input's ID:
$('#form-id').motionCaptcha();

4. OPTIONS

$('#form-id').motionCaptcha({
    // Basics:
    action: '#mc-action',        // the ID of the input containing the form action
    divId: '#mc',                // if you use an ID other than '#mc' for the placeholder, pass it in here
    cssClass: '.mc-active',      // this CSS class is applied to the 'mc' div when the plugin is active
    canvasId: '#mc-canvas',      // the ID of the MotionCAPTCHA canvas element

    // An array of shape names that you want MotionCAPTCHA to use:
    shapes: ['triangle', 'x', 'rectangle', 'circle', 'check', 'caret', 'zigzag', 'arrow', 'leftbracket', 'rightbracket', 'v', 'delete', 'star', 'pigtail'],

    // These messages are displayed inside the canvas after a user finishes drawing:
    errorMsg: 'Please try again.',
    successMsg: 'Captcha passed!',

    // This message is displayed if the user's browser doesn't support canvas:
    noCanvasMsg: "Your browser doesn't support <canvas> - try Chrome, FF4, Safari or IE9."

    // This could be any HTML string (eg. '<label>Draw this shit yo:</label>'):
    label: '<p>Please draw the shape in the box to submit the form:</p>'
});
