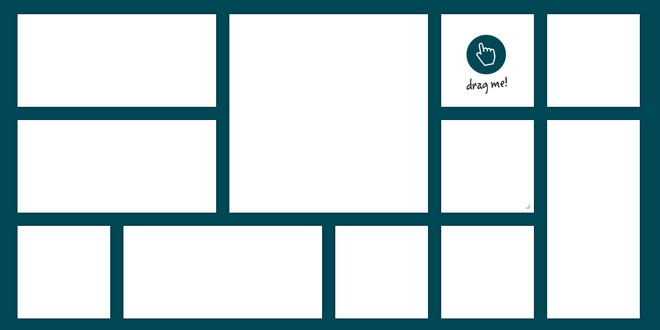

This is it, the mythical drag-and-drop multi-column grid has arrived. Gridster is a jQuery plugin that allows building intuitive draggable layouts from elements spanning multiple columns. You can even dynamically add and remove elements from the grid. It is on par with sliced bread, or possibly better.
Setup
Include dependencies
Gridster is currently written as a jQuery plugin, so you need to include it in the head of the document. Download the latest release at jQuery.
HTML Structure
Class names and tags are customizable, gridster only cares about data attributes. Use a structure like this:
<div class="gridster">
<ul>
<li data-row="1" data-col="1" data-sizex="1" data-sizey="1"></li>
<li data-row="2" data-col="1" data-sizex="1" data-sizey="1"></li>
<li data-row="3" data-col="1" data-sizex="1" data-sizey="1"></li>
<li data-row="1" data-col="2" data-sizex="2" data-sizey="1"></li>
<li data-row="2" data-col="2" data-sizex="2" data-sizey="2"></li>
<li data-row="1" data-col="4" data-sizex="1" data-sizey="1"></li>
<li data-row="2" data-col="4" data-sizex="2" data-sizey="1"></li>
<li data-row="3" data-col="4" data-sizex="1" data-sizey="1"></li>
<li data-row="1" data-col="5" data-sizex="1" data-sizey="1"></li>
<li data-row="3" data-col="5" data-sizex="1" data-sizey="1"></li>
<li data-row="1" data-col="6" data-sizex="1" data-sizey="1"></li>
<li data-row="2" data-col="6" data-sizex="1" data-sizey="2"></li>
</ul>
</div>
Grid it up!
Gridster accepts one argument, a hash of with configuration options.
$(function(){ //DOM Ready
$(".gridster ul").gridster({
widget_margins: [10, 10],
widget_base_dimensions: [140, 140]
});
});
Using the API
To get hold of the API object, use the jQuery data method like so:
$(function(){ //DOM Ready
var gridster = $(".gridster ul").gridster().data('gridster');
});
Add a new widget to the grid
gridster.add_widget('<li class="new">The HTML of the widget...</li>', 2, 1);
Remove a widget from the grid
gridster.remove_widget( $('.gridster li').eq(3) );
Get a serialized array with the elements positions
Creates a JavaScript array of objects with positions of all widgets, ready to be encoded as a JSON string.
gridster.serialize();
Options
A gridster configuration object.
widget_selector: "li"
Define which elements are the widgets. Can be a CSS Selector string or a jQuery collection of HTMLElements.
widget_margins: [10, 10]
Horizontal and vertical margins respectively for widgets.
widget_base_dimensions: [140, 140]
Base widget dimensions in pixels. The first index is the width, the second is the height.
extra_rows: 0
Add more rows to the grid in addition to those that have been calculated.
extra_cols: 0
Add more rows to the grid in addition to those that have been calculated.
max_cols: null
The maximum number of columns to create. Set to `null` to disable.
min_cols: 1
The minimum number of columns to create.
min_rows: 15
The minimum number of rows to create.
max_size_x: false
The maximum number of columns that a widget can span.
autogenerate_stylesheet: true
If true, all the CSS required to position all widgets in their respective columns and rows will be generated automatically and injected to the <head> of the document. You can set this to false and write your own CSS targeting rows and cols via data-attributes like so: [data-col="1"] { left: 10px; }.
avoid_overlapped_widgets: true
Don't allow widgets loaded from the DOM to overlap. This is helpful if you're loading widget positions form the database and they might be inconsistent.
serialize_params: function($w, wgd) { return { col: wgd.col, row: wgd.row, size_x: wgd.size_x, size_y: wgd.size_y } }
A function to return serialized data for each each widget, used when calling the serialize method. Two arguments are passed:$w: the jQuery wrapped HTMLElement, and wgd: the grid coords object with keys col, row, size_x and size_y.
draggable.start: function(event, ui){}
A callback for when dragging starts.
draggable.drag: function(event, ui){}
A callback for when the mouse is moved during the dragging.
draggable.stop: function(event, ui){}
A callback for when dragging stops.
resize.enabled: false
Set to true to enable drag-and-drop widget resizing. This setting doesn't affect to the resize_widget method.
resize.axes: ['both']
Axes in which widgets can be resized. Can be x, y or both
resize.handle_class: 'gs-resize-handle'
CSS class name used by resize handles.
resize.handle_append_to: ''
Set a valid CSS selector to append resize handles to. If value evaluates to false it's appended to the widget.
resize.max_size: [Infinity, Infinity]
Limit widget dimensions when resizing. Array values should be integers: [max_cols_occupied, max_rows_occupied]
resize.start: function(e, ui, $widget) {}
A callback executed when resizing starts.
resize.resize: function(e, ui, $widget) {}
A callback executed during the resizing.
resize.stop: function(e, ui, $widget) {}
A callback executed when resizing stops.
collision.on_overlap_start: function(collider_data) { }
A callback for the first time when a widget enters a new grid cell.
collision.on_overlap: function(collider_data) { }
A callback for each time a widget moves inside a grid cell.
collision.on_overlap_stop: function(collider_data) { }
A callback for the first time when a widget leaves its old grid cell.
Methods:
.add_widget( html, [size_x], [size_y], [col], [row] )
Create a new widget with the given html and add it to the grid.
Parameters
- html String|HTMLElement
- The string of HTMLElement that represents the widget is going to be added.
- size_x Number
- The number of rows that the widget occupies. Defaults to 1.
- size_y Number
- The number of columns that the widget occupies. Defaults to 1.
- col Number
- The column the widget should start in.
- row Number
- The row the widget should start in.
Returns
Returns the jQuery wrapped HTMLElement representing the widget that's been created.
.resize_widget( $widget, [size_x], [size_y], [reposition], [callback] )
Change the size of a widget. Width is limited to the current grid width.
Parameters
- $widget HTMLElement
- The jQuery wrapped HTMLElement that represents the widget is going to be resized.
- size_x Number
- The number of rows that the widget is going to span. Defaults to current size_x.
- size_y Number
- The number of columns that the widget is going to span. Defaults to current size_y.
- reposition Boolean
- Set to false to not move the widget to the left if there is insufficient space on the right. By default size_x is limited to the space available from the column where the widget begins, until the last column to the right.
Returns
Returns the jQuery wrapped HTMLElement representing the widget that's been resized.
.remove_widget( el, [callback] )
Remove a widget from the grid.
Parameters
- el HTMLElement
- The jQuery wrapped HTMLElement representing the widget that you want to remove.
- callback Function
- A callback for when the widget is removed.
Returns
Returns the instance of the Gridster class.
.serialize( [$widgets] )
Creates an array of objects representing the current position of all widgets in the grid.
Parameters
- $widgets HTMLElement
- The collection of jQuery wrapped HTMLElements you want to serialize. If no argument is passed all widgets will be serialized.
Returns
Returns an Array of Objects (ready to be encoded as a JSON string) with the data specified by the serialize_params option.
.serialize_changed( )
Creates an array of objects representing the current position of the widgets who have changed position.
Returns
Returns an Array of Objects (ready to be encoded as a JSON string) with the data specified in the serialize_params option.
.enable( )
Enables dragging.
Returns
Returns the instance of the Gridster class.
.disable( )
Disables dragging.
Returns
Returns the instance of the Gridster class.
